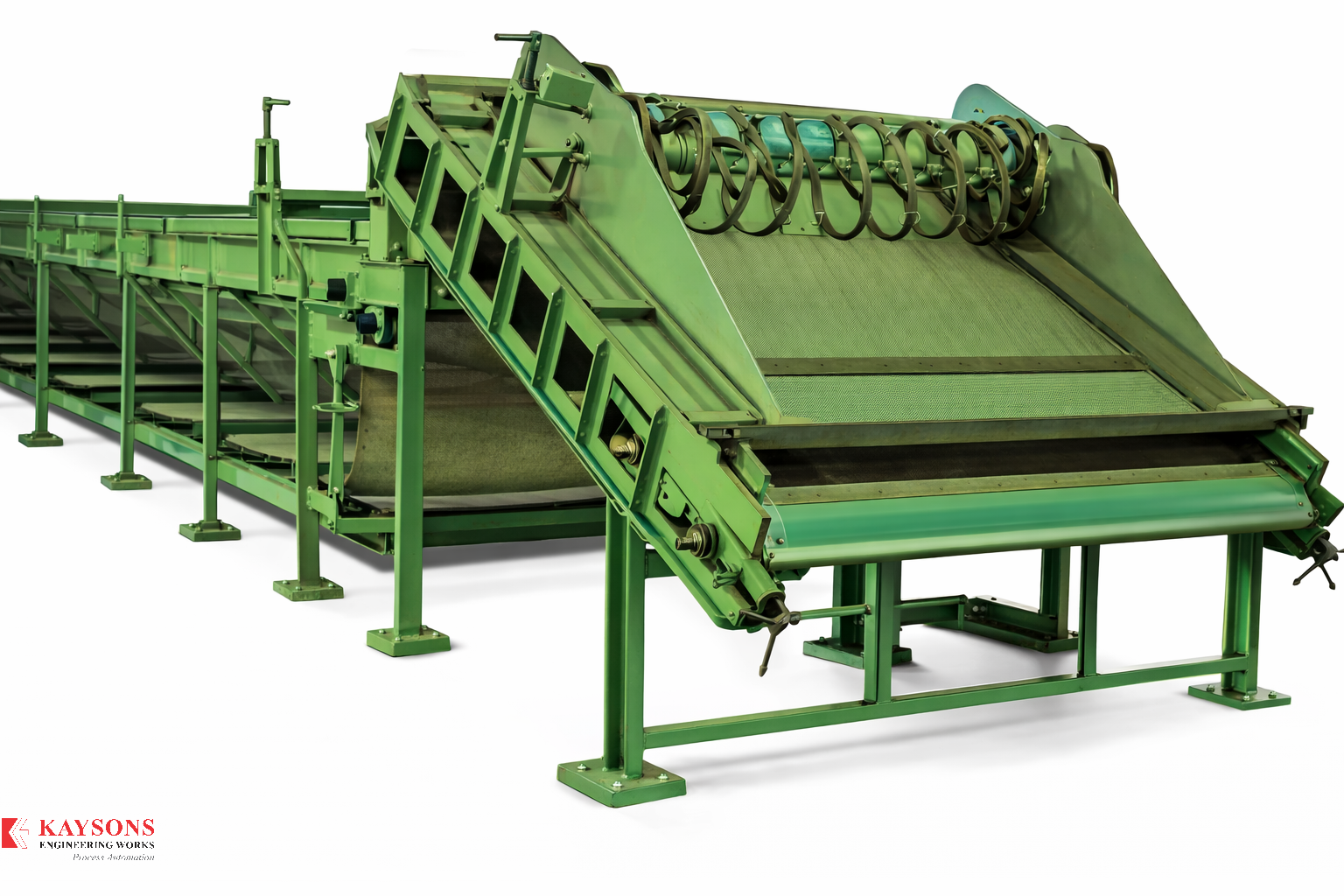

CONTINUOUS FERMENTING MACHINE

Size: 2250 W x 5 + 4 Module

KAYSONS CONTINUOUS FERMENTING MACHINE 400 Kg /Hr DRYER OUTPUT SPECIFICATION:
9 M(5+4) PARALLEL MODEL (FOR ORTHODOX TYPE PROCESS) MODULE 4 + 5 Specification Standard Machine of 9 Modules (4 + 5 )
TUBULAR MODULE CONSTRUCTION OF 2.25 MTS. WIDE NON STICK WOVEN BELT ( 60 % Aperture opening) (EFFECTIVE BELT WIDTH 2.15 MTS)PARALLEL ARRANGEMENTS, FEED CONVEYOR WITH FOOD GRADE PVC BELT.
S.S PLENEUM CHAMBER, & S.S PERFORATED SKID PLATE,
S.S THROUGH SPILLAGE GUARD.
S.S FEED & DISCHARGE HOPPER,
S.S LEVELLER- 2 NO,
S.S UPTURNER(3AXIS) – 2 NOS,
S.S BRUSH ROLLER,
BONFIGLIOLI GEAR REDUCER, ABB MOTORS MAIN DRIVE,
5HP CENTRAL HUMIDIFICATION UNIT 2 NOS,
ELECTRICAL CONSOLE WITH MAIN INVERTED DRIVE TEMPERATURE CONTROLLER AS PER OUR STANDARED DESIGN.
HUMIDIFICATION PLANT WITH HEATING SYSTEM.

KAYSONS CONTINUOUS FERMENTING MACHINE 900 Kg /Hr DRYER OUTPUT SPECIFICATION:
6 M(6 PARALLEL MODEL (FOR ORTHODOX TYPE PROCESS) MODULE 6
Specification Standard Machine of 6 Modules (6)
TUBULAR MODULE CONSTRUCTION OF 2.25 MTS. WIDE NON STICK WOVEN BELT (60 % Aperture opening)(EFFECTIVE BELT WIDTH 2.15 MTS)PARALLEL ARRANGEMENTS, FEED CONVEYOR WITH FOOD GRADE PVC BELT.
S.S PLENEUM CHAMBER, & S.S PERFORATED SKID PLATE,
S.S THROUGH SPILLAGE GUARD.
S.S FEED & DISCHARGE HOPPER,
S.S LEVELLER- 2 NO,
S.S UPTURNER(3AXIS) – 2 NOS,
S.S BRUSH ROLLER,
BONFIGLIOLI GEAR REDUCER, ABB MOTORS MAIN DRIVE,
HUMIDIFICATION UNIT 6 NOS,
ELECTRICAL CONSOLE WITH MAIN INVERTED DRIVE TEMPERATURE CONTROLLER AS PER OUR STANDARED DESIGN. HUMIDIFICATION PLANT WITH HEATING SYSTEM.
Main Drive : 2 HP with Variable Frequency Drive

Googy made of Stainless Steel
304 g with Drive system, mounted on heavy duty structural.
With SS Wire mesh No.4 & 6
Size: Googy dia. 1500 mm ( 5 ft) x 12 ft
Long. Mounted on heavy tubular structure.
Drive motor 2 HP geared motor.
