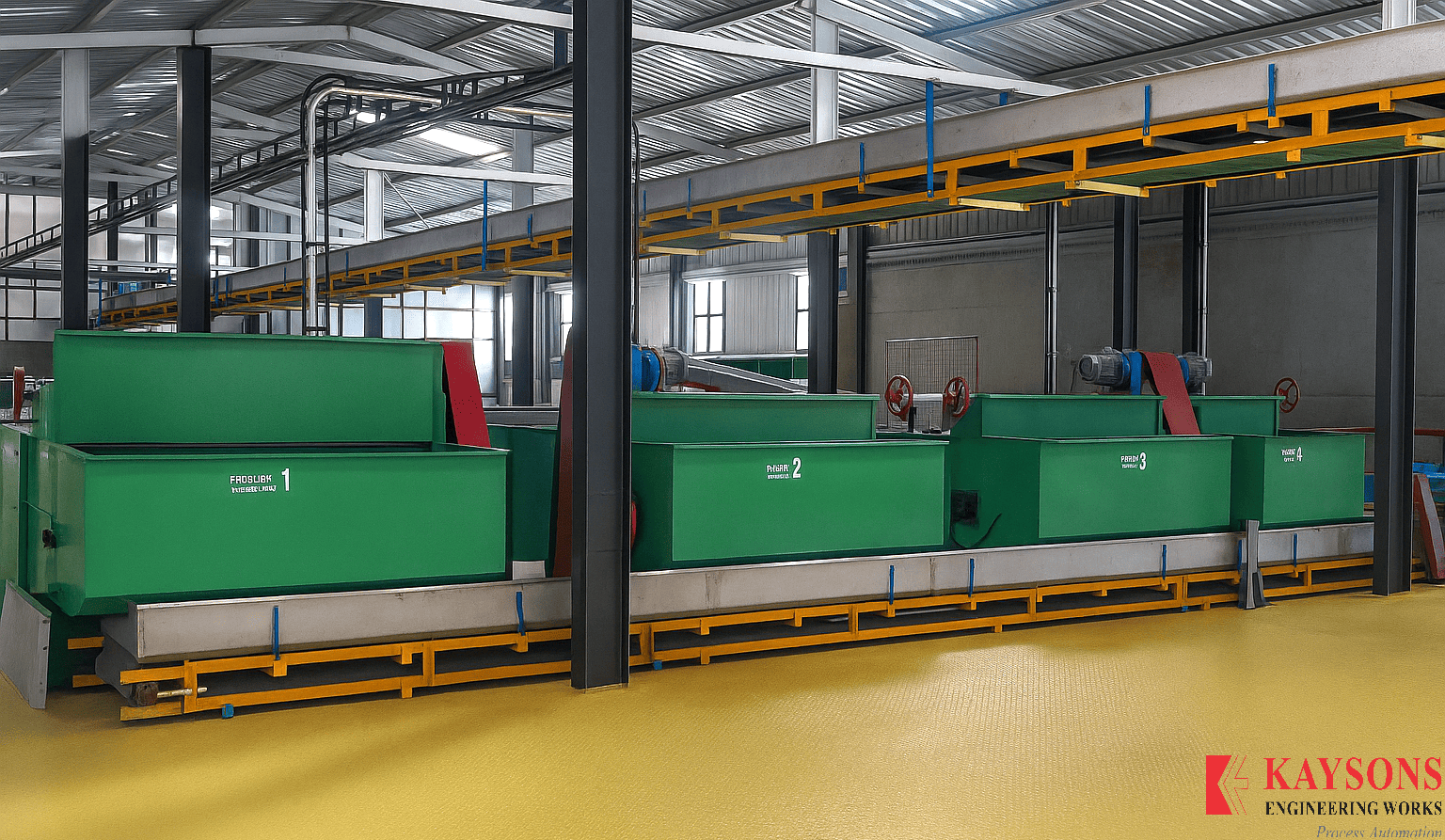

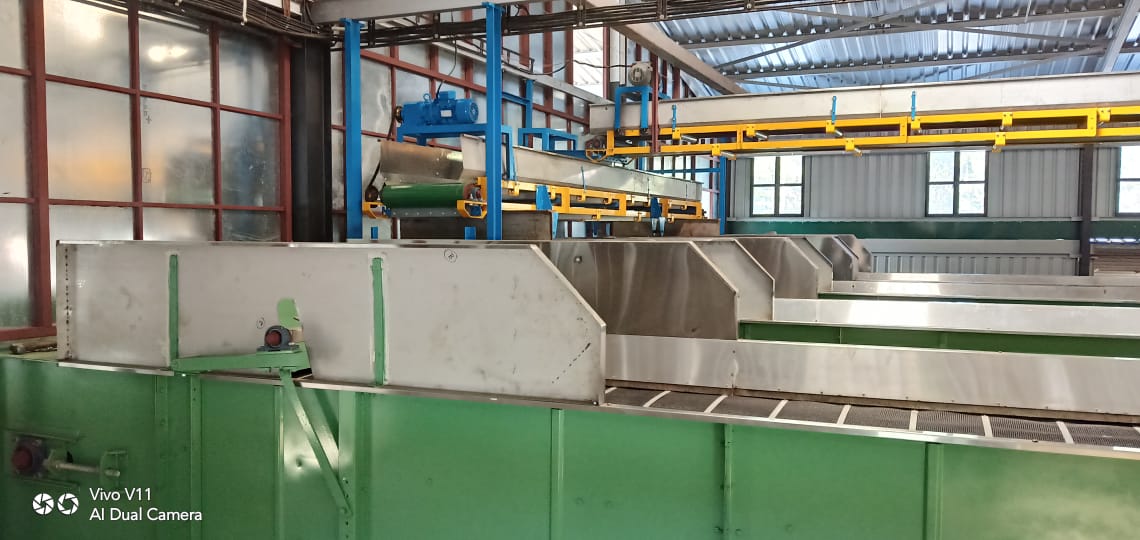

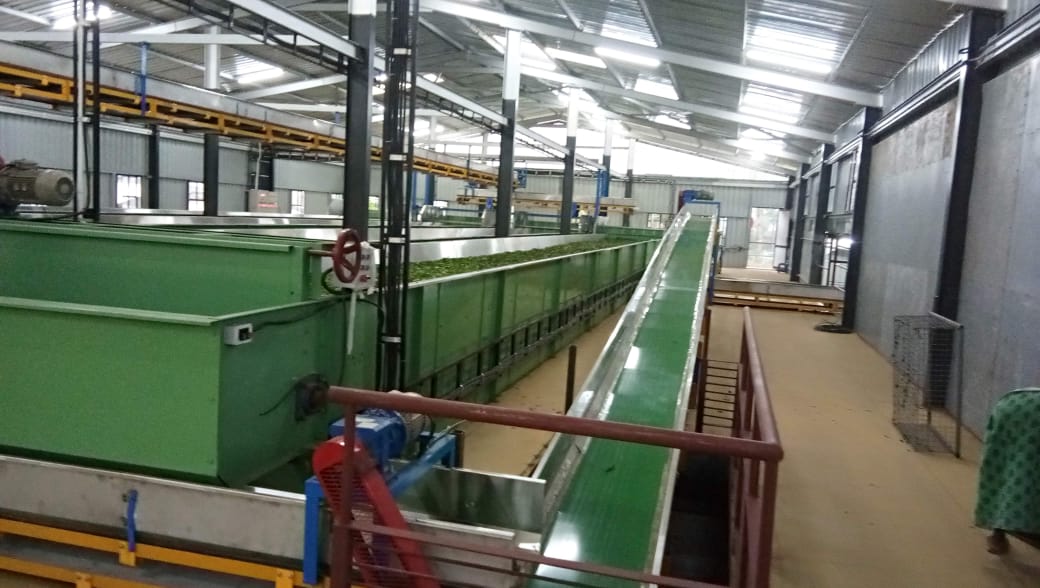

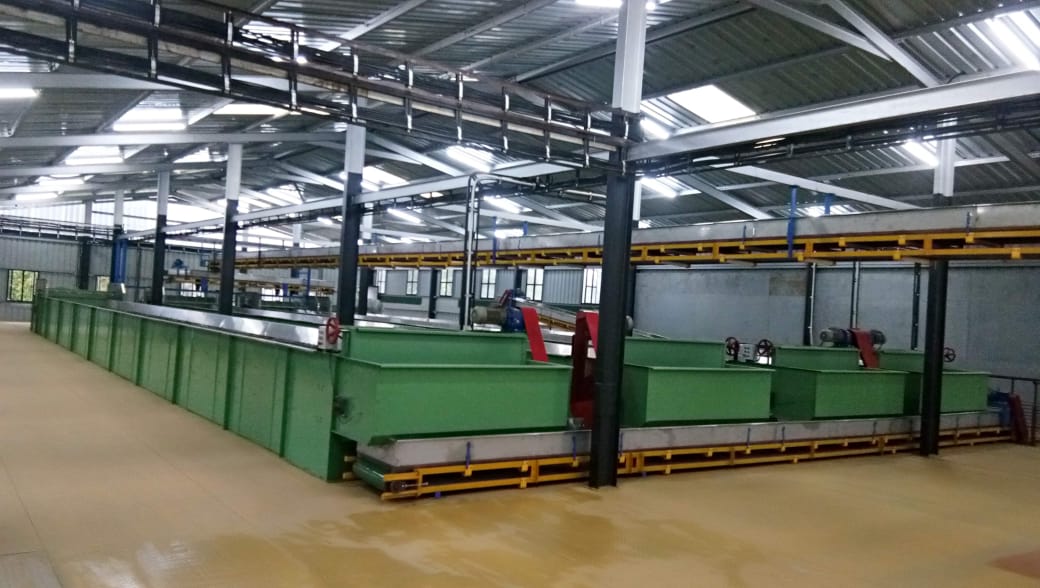

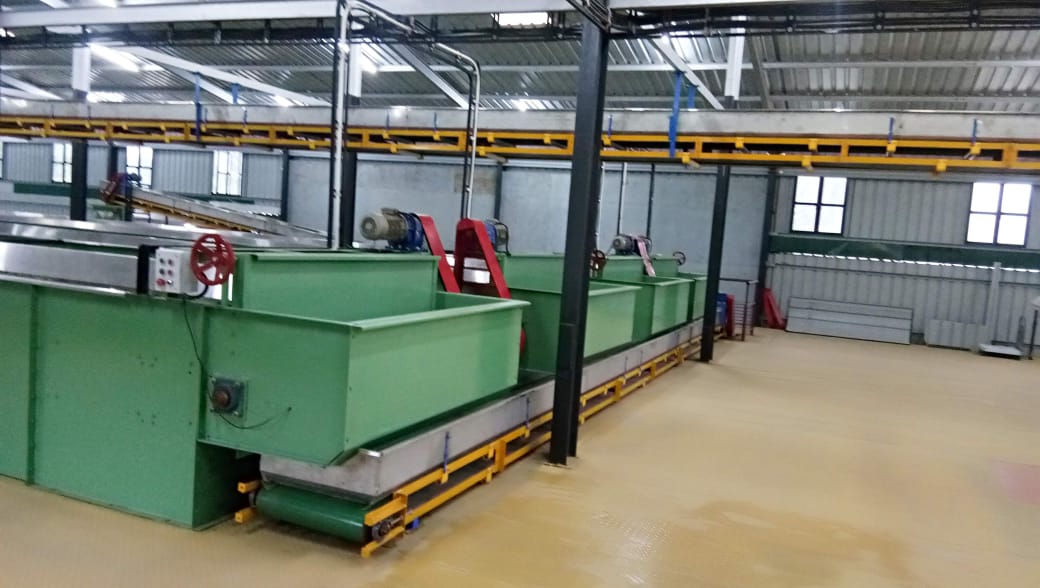

MOVING BED TROUGH
MOVING BED TROUGH: 75 ft long x 6 ft wide with 1250 mm 5 HP Axial Flow Fan
Technical Specification:
Size: 75’ Long x 6' Wide
Trough body made of Mild steel sheet 1.25 mm
Drive side Plate & Tail side sheet MS 4 mm
Modular Trough of 2440 mm long panel with 875 mm height plenum chamber.
Leaf Bed sheet Stainless Steel 304 G x 1.5 mm.
With No.4 Netlon Tea Mesh Belt of 1823 mm width x 29,260 long.
With Hot dip galvanize belt Specification: 24-20-16-14 with chain attachment of 1” Pitch on either sides.
with bottom supports at intervals of 500 mm.
Drive unit Bonfiglioli AS 45 / Ratio 202.1 Gear Reducer
And Siemens Motor 2 HP/1440 rpm
Leaf leveller Drive unit Bonfiglioli 1 HP geared motor
W 63/45rpm
Axial flow fan 1200 mm with 12.5 pressure, 5 HP 960 Rpm Single speed motor to deliver 24000 CFM
Round to rectangle transition duct (Fan to Trough connection), with hot and cold air suction damper to be connected to fan suction,
(Without Electrical Cables )
